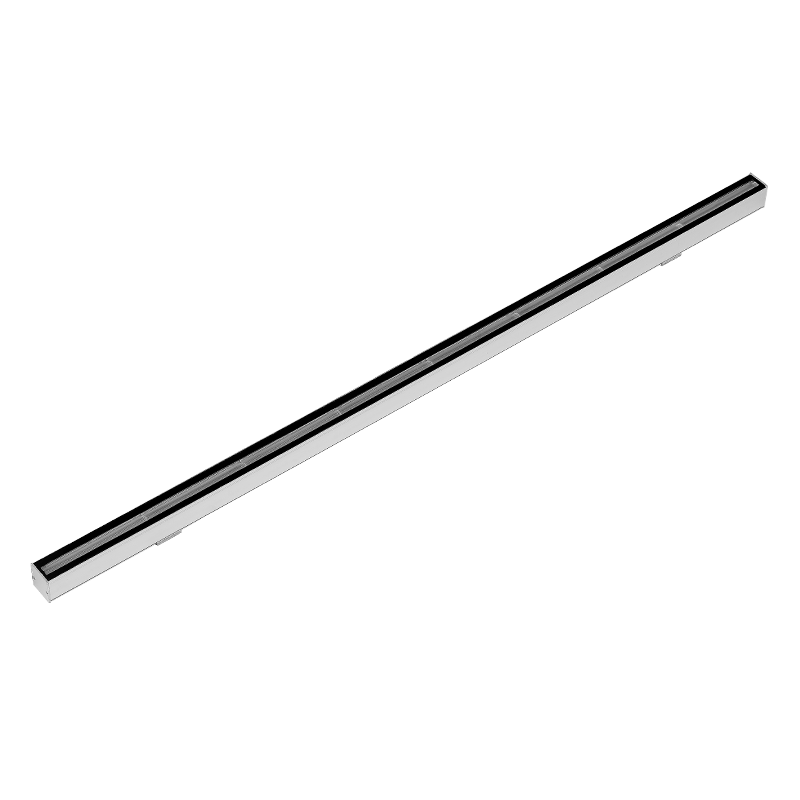

SL413 Series 30×32×1000mm IP67 Integrated Lens Anti-Glare Wall Washer Light for Outdoor Facade Wall Washing
Architectural-grade IP67 anti-glare wall washer light with an integrated optical lens design. Designed for outdoor architectural facade wall washing, it hides the light source and delivers clean illumination with no dark zones or ribbed light spots, meeting long-term exterior lighting requirements.Custom lengths: 0.25m–1.2m.
Core Highlights:
- Integrated Optical Lens Design
- IP67 Waterproof Protection
- Anti-Glare Hidden Light Source
- No Dark Zones or Ribbed Light Spots
Technical Specifications
| Category | Parameters |
|---|---|
| Light Source | CREE / OSRAM / LUMILEDS / NICHIA; Color Temperature: 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / customized colors; LED Lifespan: ≥50,000 hrs |
| Optics & Photometrics | Beam Angle: 15x70°; Pixel Count: 1/4/8 for 1m, 1/2/4 for 0.5m, 1/1/2 for 0.3m |
| Electrical | DC24V / DC48V input; maximum power varies depending on fixture length and LED configuration: 20W max. for the 1000mm model, 10W max. for the 500mm model, and 5W max. for the 300mm model; requires an external driver |
| Control Protocol | ON/OFF (constant lighting mode) / DMX512 external control with self-developed anti-interference technology |
| Housing & Finish | Housing Material: Aluminum alloy body with tempered glass cover; Housing Color: Oxidized silver white / oxidized silver gray / customized colors |
| Ingress Protection | IP67 |
| Dimensions & Weight | 30×32×1000mm / 1.5kg net; custom lengths from 0.25m to 1.2m available |
| Mounting & Installation | Installation: Fixed; Cable Exit: Bottom / Side; Cable Type: Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
