SL413 Series 25×30×1000mm IP66 Tempered Glass Wall Washer Light for Large-Scale Facade Wall Washing
Architectural-grade IP66 wall washer light with an aluminum alloy body and tempered glass cover. Designed for large-scale facade wall washing and outdoor landscape lighting, it offers efficient heat dissipation and weather-resistant performance for long-term outdoor use, while DC48V safe wide-voltage power solves voltage drop issues in high-rise applications.
Core Highlights:
- Supports DC48V Power Supply
- Tempered Glass Cover
- -30°C to +50°C Temperature Range
- Ideal for Large Building Outlines

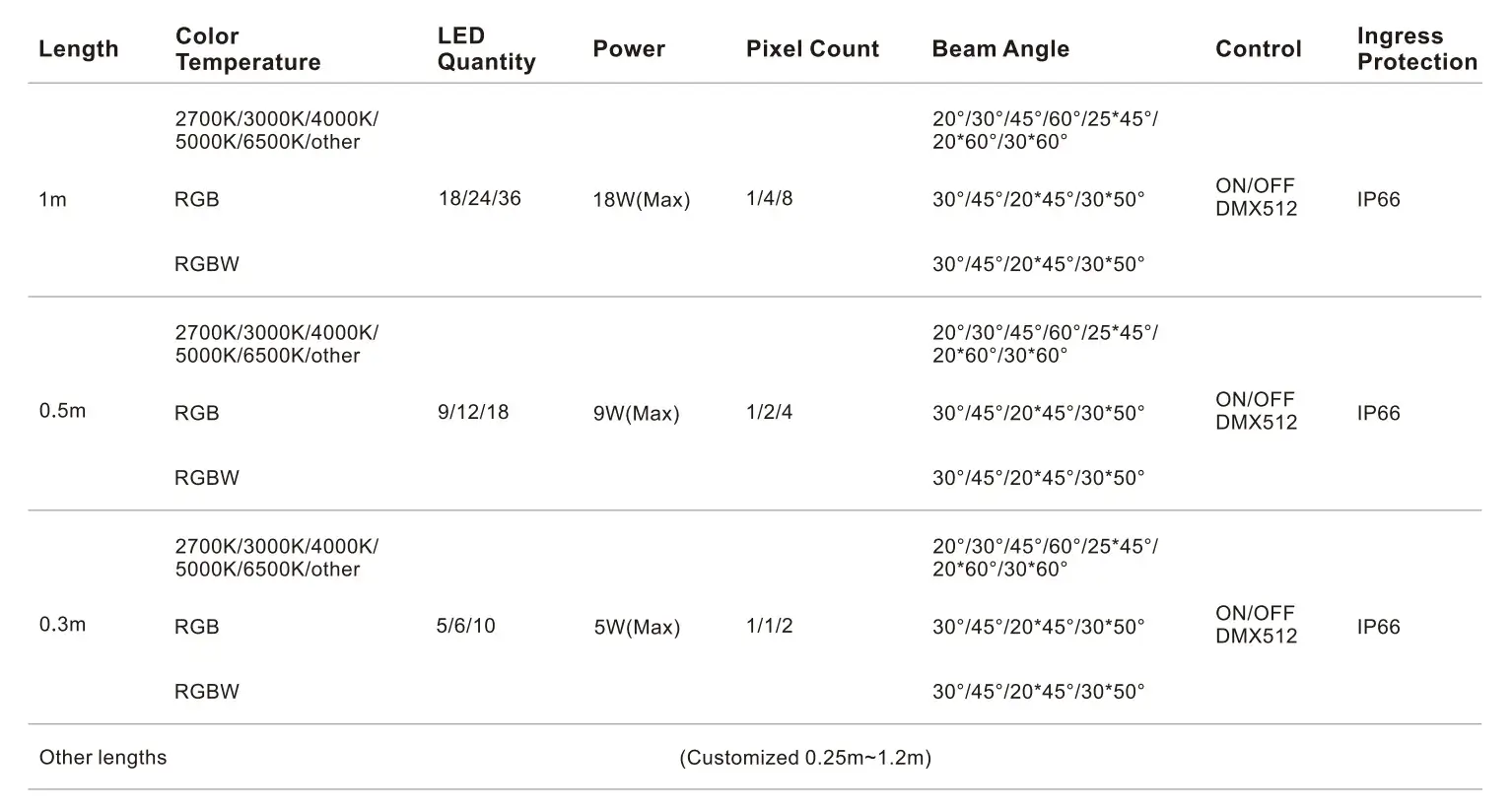

Technical Specifications
| Category | Parameters |
|---|---|
| LED Brand | CREE / OSRAM / LUMILEDS / NICHIA |
| LED Lifespan | ≥50,000 hrs |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / customized colors |
| Input Voltage | DC24V / DC48V input |
| Control Method | ON/OFF constant lighting / DMX512 external control |
| Housing Material | Aluminum alloy body with tempered glass cover |
| Housing Color | Oxidized silver white / oxidized silver gray / customized colors |
| Ingress Protection | IP66 |
| Dimensions & Weight | 25×30×1000 / 1kg net |
| Length | 0.25–1.2 m Custom Lengths |
| Installation | Fixed / Adjustable |
| Cable Exit | Bottom / Side |
| Cable Type | Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
Fixture Options
