SL413 Series 22×28×6000mm IP68 IK06 Ultra-Long In-Ground Outline Light for Plaza & Park Pathway Lighting
Heavy-duty IP68 IK06 in-ground LED linear outline light with a composite light-emitting surface. Ideal for parks, plazas, and public spaces, it creates soft, continuous landscape light lines for ground applications. Scratch-resistant and wear-resistant design supports durable use, while end-to-end connection keeps the light continuous with no dark zones between fixtures. Custom lengths up to 6000mm are supported.
Core Highlights:
- No Dark Zones Between Connected Fixtures
- IK06 Car-Passable Design
- IP68 Waterproof Protection
- Custom Lengths up to 6000mm

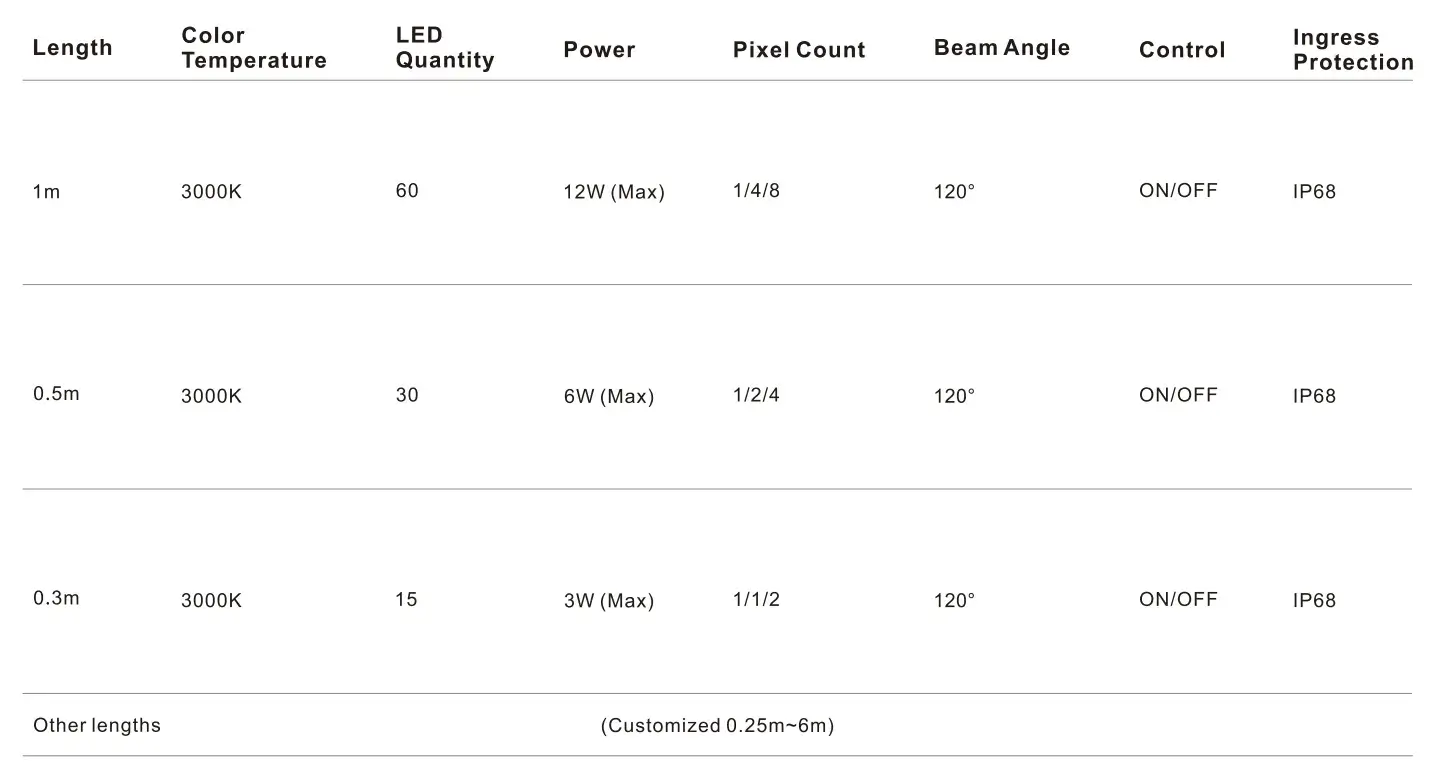

Technical Specifications
| Category | Parameters |
|---|---|
| LED Brand | CREE / OSRAM / LUMILEDS / NICHIA |
| LED Lifespan | ≥50,000 hrs |
| Color Temperature | 3000K |
| Input Voltage | DC 24V input |
| Control Method | ON/OFF constant lighting |
| Housing Material | Aluminum alloy body with composite material cover |
| Housing Color | Oxidized silver white / oxidized silver gray / other customized colors |
| Ingress Protection | IP68 |
| Impact Resistance | IK06 |
| Dimensions & Weight | 22×28×6000mm / 7.8kg net |
| Length | 0.25–6 m Custom Lengths |
| Installation | Fixed |
| Cable Exit | Bottom |
| Cable Type | Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
Fixture Options
