SL413 Series 21×36×1000mm IP66 DC48V Outline Light for High-Rise Architectural Facade Lighting
Architectural-grade IP66 LED linear outline light with a milky white PC cover for soft, uniform illumination. Suitable for outdoor architectural landscape lighting and large building outlines. Fully sealed waterproof design ensures reliable outdoor use, while DC48V safe wide-voltage power solves voltage drop issues in high-rise applications. Custom lengths: 0.25m–1.2m.
Core Highlights:
- Supports DC48V Power Supply
- Ideal for Large Building Outlines
- -30°C to +50°C Temperature Range
- IP66 Sealed Aluminum Construction

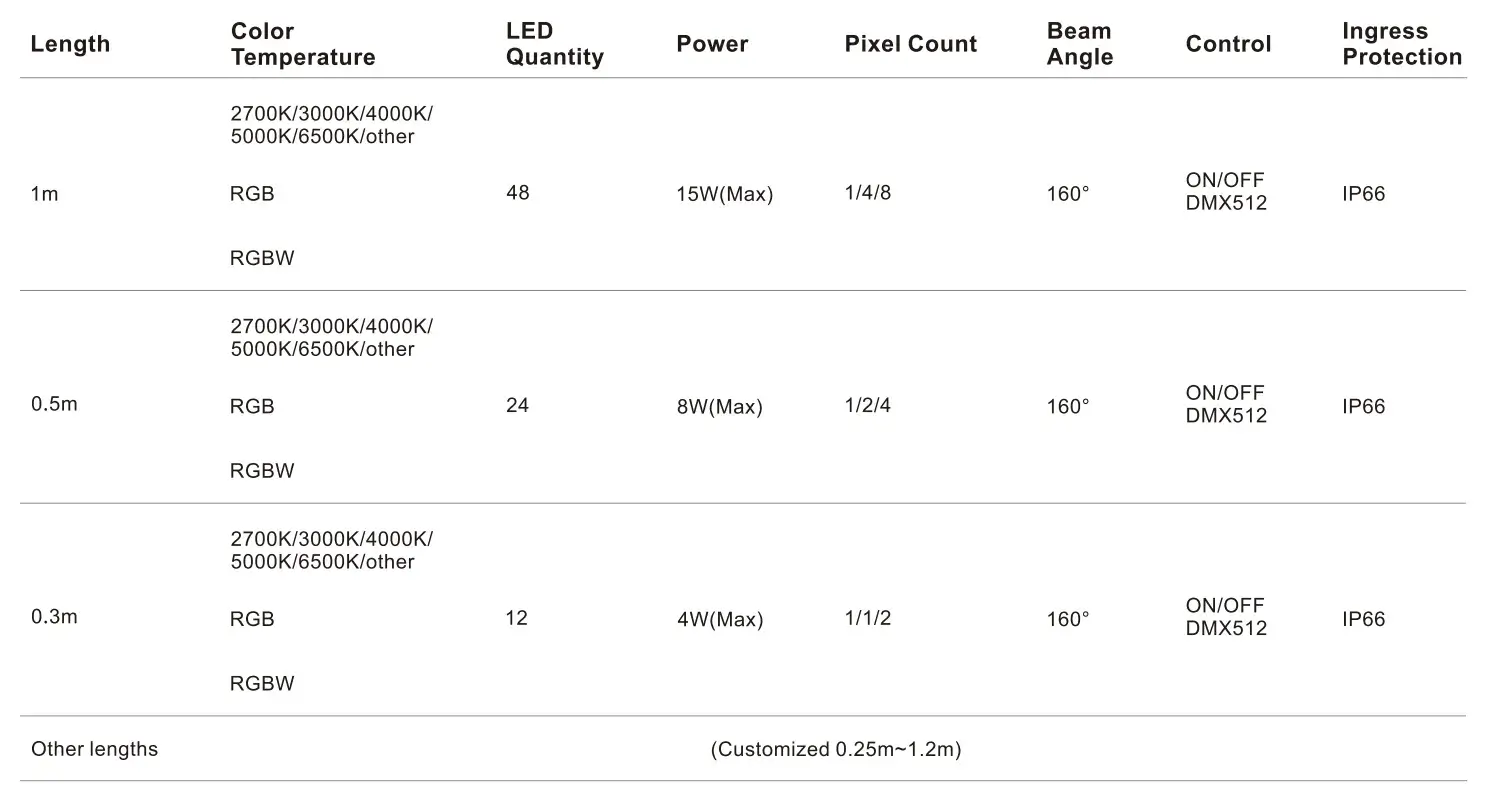

Technical Specifications
| Category | Parameters |
|---|---|
| LED Brand | CREE / OSRAM / LUMILEDS / NICHIA |
| LED Lifespan | ≥50,000 hrs |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / customized colors |
| Input Voltage | DC24V / DC48V input |
| Control Method | ON/OFF constant lighting / DMX512 external control |
| Housing Material | Aluminum alloy body with milky white PC cover |
| Housing Color | Oxidized silver white / oxidized silver gray / customized colors |
| Ingress Protection | IP66 |
| Dimensions & Weight | 21×36×1000mm / 0.63kg net |
| Length | 0.25–1.2 m Custom Lengths |
| Installation | Fixed / Adjustable |
| Cable Exit | Bottom / Side |
| Cable Type | Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
