BL Series 200×100×55mm IP67/IP68 IK10 Rectangular LED Brick Light for Plaza and Landscape Lighting

BL Series 200×100×55mm IP67/IP68 IK10 Rectangular LED Brick Light for Plaza and Landscape Lighting

Architectural-grade rectangular LED brick light for plazas, parks, pathways, and landscape ground lighting. 200×100mm rectangular design, high-strength tempered glass cover, stainless steel base, strong and durable for outdoor ground use. Soft and uniform light output, adaptable to different brightness requirements, with ETL certification for reliable project applications.

Core Highlights:

ETL Certified
500kg Load-Bearing Capacity
Soft Uniform Light Output
High-Strength Tempered Glass Cover

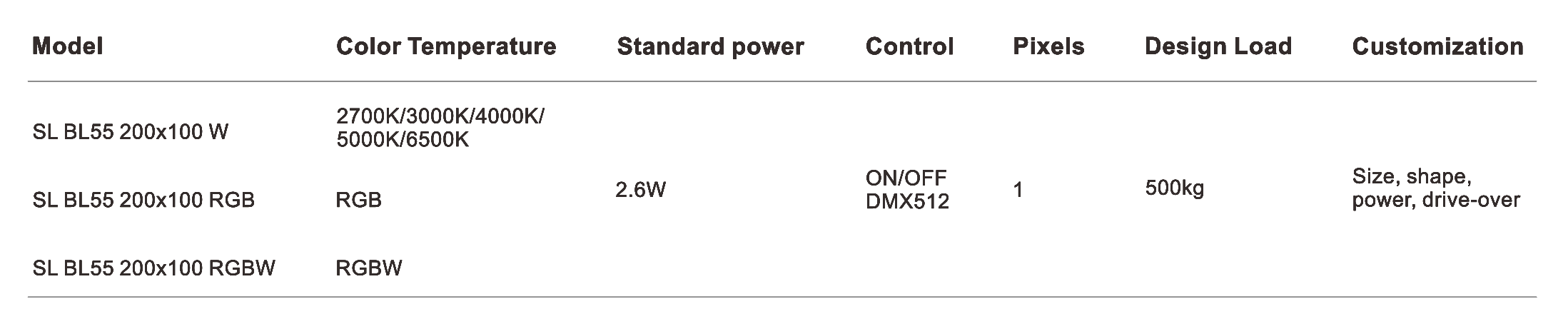

Technical Specifications

Category	Parameters
LED Brand	CREE / OSRAM / LUMILEDS / NICHIA
LED Lifespan	≥50,000 hrs
Color Temperature	2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / other
Input Voltage	DC24V / AC12V
Control Method	ON/OFF constant lighting / DMX512 external control
Housing Material	Stainless steel body
Housing Color	Natural stainless steel color
Cover Material	High-strength frosted tempered glass cover
Ingress Protection	IP67 / IP68
Impact Resistance	IK10
Installation	Embedded installation
Cable Exit	Bare wire
Cable Type	Outdoor-rated sheathed signal cable and power cable
Dimensions & Weight	200×100×55mm / 1.5kg net
Operating Environment	-30°C to +50°C working range; UV-resistant for outdoor use
Additional Features	Customizable / 500kg load-bearing / Anti-slip / Interactive lighting
Certifications	ETL Listed

Fixture Options
