BL Series 300×300×55mm Large Light-Emitting Surface LED Brick Light for Large Plaza Landscape Lighting
Architectural-grade LED brick light for large outdoor plazas, park landscapes, and cultural tourism landmarks. 300×300mm large light-emitting surface, high-strength frosted tempered glass cover, stainless steel base, strong and durable structure. Uniform light output, better visual continuity, CE certification for reliable project use.
Core Highlights:
- Large Light-Emitting Surface
- Uniform Light Output
- Strong Visual Continuity
- CE Certified
Technical Specifications
| Category | Parameters |
|---|---|
| LED Brand | CREE / OSRAM / LUMILEDS / NICHIA |
| LED Lifespan | ≥50,000 hrs |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / other |
| Input Voltage | DC24V / AC12V |
| Control Method | ON/OFF constant lighting / DMX512 external control |
| Housing Material | Stainless steel body |
| Housing Color | Natural stainless steel color |
| Cover Material | High-strength frosted tempered glass cover |
| Ingress Protection | IP67 / IP68 |
| Impact Resistance | IK10 |
| Installation | Embedded installation |
| Cable Exit | Bare wire |
| Cable Type | Outdoor-rated sheathed signal cable and power cable |
| Dimensions & Weight | 300×300×55mm / 4.8kg net |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
| Additional Features | Customizable / 500kg load-bearing / Anti-slip / Interactive lighting |
| Certifications | CE Certified |

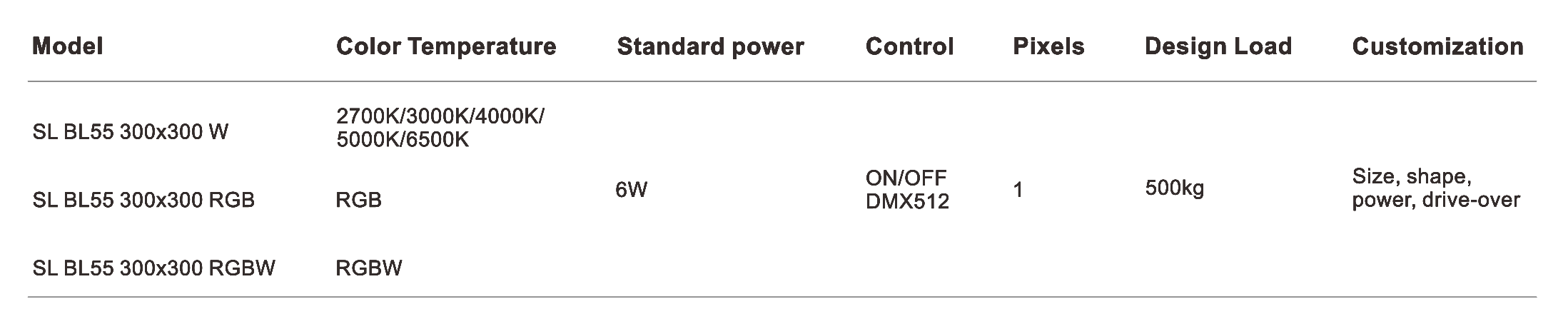

Fixture Options
