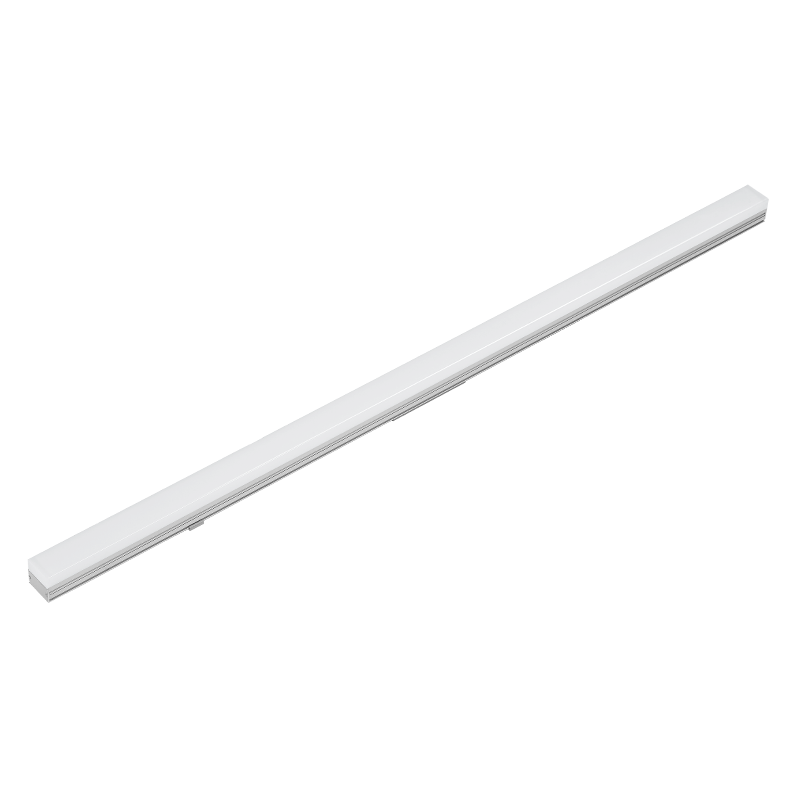

SL413 Series 35×35×1000mm IP66 Anti-Glare Outline Light for Large Architectural Lighting Projects
Architectural-grade IP66 LED linear outline light with a milky white PC cover for uniform anti-glare illumination. Ideal for large architectural lighting projects requiring clean and continuous light lines, it keeps the light uniform with no dark zones between connected fixtures. カスタムの長さ: 0.25m～1.2m.
主要なハイライト:
- Uniform Anti-Glare Light Output
- No Dark Zones Between Connected Fixtures
- DMX512 RGB/RGBW Dynamic Control
- -30°C to +50°C Temperature Range
技術仕様
| Category | Parameters |
|---|---|
| LED Brand | CREE / OSRAM / LUMILEDS / NICHIA |
| LED Lifespan | ≥50,000 hrs |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / customized colors |
| Input Voltage | DC 24V input |
| Control Method | ON/OFF constant lighting / DMX512 external control |
| Housing Material | Aluminum alloy body with milky white PC cover |
| Housing Color | Oxidized silver white / oxidized silver gray / other color customized |
| Ingress Protection | IP66 |
| Dimensions & Weight | 35×35×1000mm / 0.955kg net |
| Length | 0.25–1.2 m Custom Lengths |
| Installation | Fixed / Adjustable |
| Cable Exit | Bottom / Side |
| Cable Type | Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV-resistant outdoor use |
治具オプション
