SL413 Series 19×10×1000mm IP66 Super-Slim Outline Light for Outdoor Architectural Facade Lighting
Architectural-grade IP66 ultra-slim LED linear outline light with a compact 19×10mm body that saves installation space. Designed for concealed installation in narrow structures, indoor decorative lighting, and outdoor architectural landscape lighting, it offers UV and salt-spray resistance, efficient heat dissipation, and durable outdoor performance. カスタムの長さ: 0.25m～1.2m.
主要なハイライト:
- Ultra-Slim 19×10mm Body
- IP66 Sealed Aluminum Construction
- -30°C to +50°C Temperature Range
- Suitable for Indoor Lighting

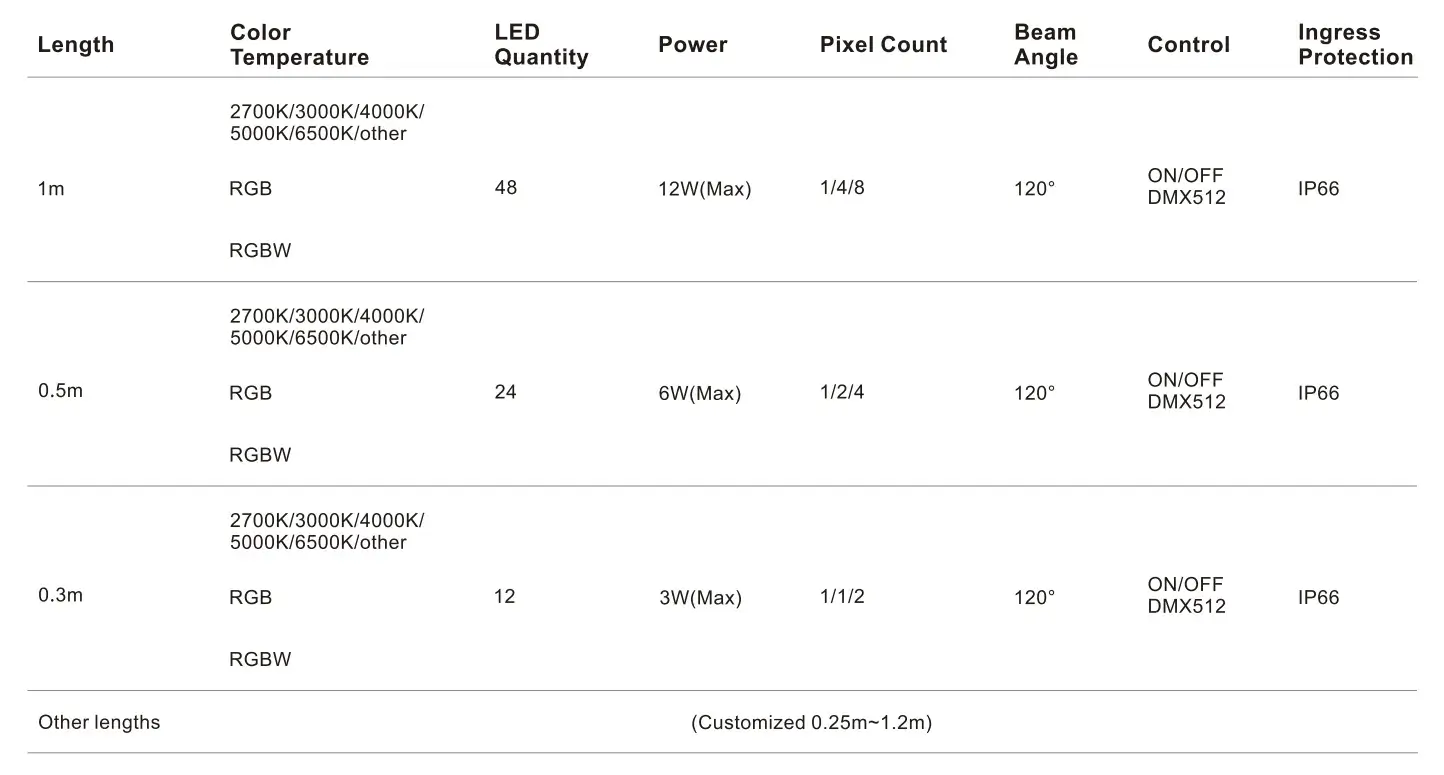

技術仕様
| Category | Parameters |
|---|---|
| Light Source | CREE / OSRAM / LUMILEDS / NICHIA; Color Temperature: 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / customized colors; LED Lifespan: ≥50,000 hrs |
| Optics & Photometrics | Beam Angle: 120°; Pixel Count: 1/4/8 for 1m, 1/2/4 for 0.5m, 1/1/2 for 0.3m |
| Electrical | DC 24V input; maximum power varies depending on fixture length and LED configuration: 12W max. for the 1000mm model, 6W max. for the 500mm model, and 3W max. for the 300mm model; requires an external driver. |
| Control Protocol | ON/OFF (constant lighting mode) / DMX512 external control with self-developed anti-interference technology |
| Housing & Finish | Housing Material: Aluminum alloy body with aluminum buckle plate cover; Housing Color: Oxidized silver white / oxidized silver gray / customized colors |
| Ingress Protection | IP66 |
| Dimensions & Weight | 19×10×1000mm / 0.5kg net; custom lengths from 0.25m to 1.2m available |
| Mounting & Installation | Installation: Fixed / Adjustable; Cable Exit: Bottom / Side; Cable Type: Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV and salt-spray resistant for outdoor use |
