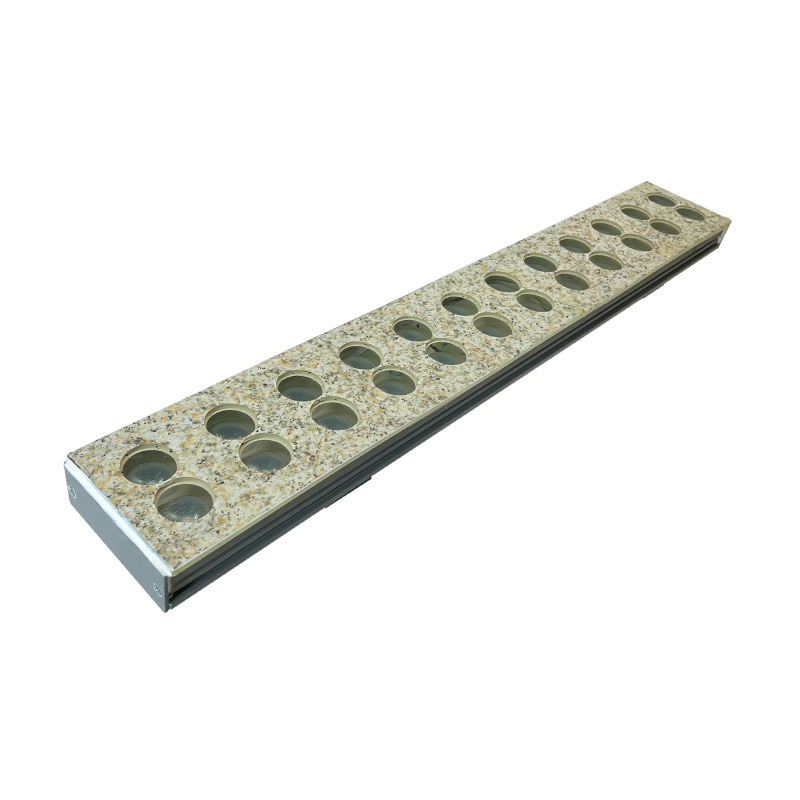

SL413 Series 70×26×500mm IK10 Marble-Texture In-Ground Wall Washer Light for Architectural Landscape Lighting
Heavy-duty IK10 in-ground wall washer light designed for architectural landscape lighting. Its customizable marble-texture surface blends with paving and ground finishes for visual consistency. IP67 waterproof sealing ensures reliable operation in buried installation environments, with stable performance from -30°C to +50°C.
Core Highlights:
- IK10 Heavy-Duty Protection
- Custom Marble-Texture Surface
- IP67 Waterproof Sealing
- Reliable Buried Installation
Technical Specifications
| Category | Parameters |
|---|---|
| Light Source | CREE / OSRAM / LUMILEDS / NICHIA; Color Temperature: 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / customized colors; LED Lifespan: ≥50,000 hrs |
| Optics & Photometrics | Beam Angle: Single-color: 6° / 10° / 15° / 30° / 45° / 60° / 10×20° / 15×25° / 20×45° / 10×60° / 30×60°; RGB/RGBW: 20° / 30° / 45° / 60° / 15×30° / 25×40°; Pixel Count: 1/4/8 for 1m, 1/2/4 for 0.5m, 1/1/2 for 0.3m |
| Electrical | DC 24V input; maximum power varies depending on fixture length and LED configuration: 70W max. for the 1000mm model, 30W max. for the 500mm model, and 18W max. for the 300mm model; requires an external driver. |
| Control Protocol | ON/OFF (constant lighting mode) / DMX512 external control with self-developed anti-interference technology |
| Housing & Finish | Housing Material: Stainless steel body; Housing Color: Natural stainless steel finish; Cover Material: High-strength textured tempered glass cover |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
| Mounting & Installation | Installation: Embedded installation; Cable Exit: Bare wire; Cable Type: Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
