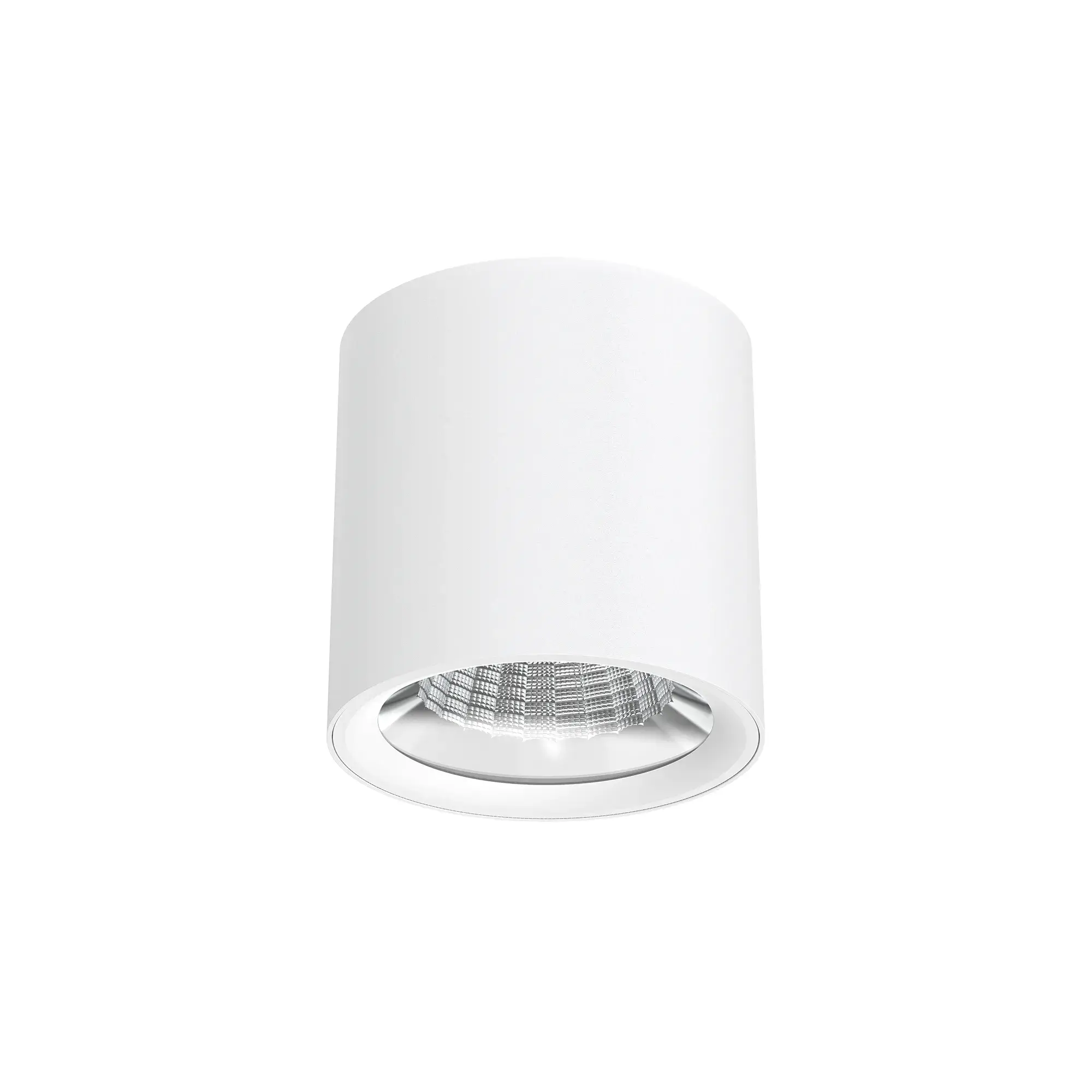

SL Y Series Surface-Mounted LED Downlight for Indoor Commercial and Architectural Lighting
Commercial indoor surface-mounted LED downlight with an aluminum alloy housing, available in multiple sizes for different lighting requirements. It offers 2700K–5000K color temperatures and 20°/40°/60° beam angles, with DMX512, 0–10V, DALI, and smart sensor control available. Suitable for retail spaces, hotels, offices, galleries, and other indoor commercial or architectural lighting applications.
Core Highlights:
- Multiple Size Options
- 2700K–5000K Color Temperature Options
- 20°/40°/60° Beam Angle Options
- DMX512, 0–10V, DALI & Smart Sensor Control
Technical Specifications
| Category | Parameters |
|---|---|
| LED Brand | CREE / OSRAM / LUMILEDS / NICHIA |
| LED Lifespan | ≥50,000 hrs |
| Color Temperature | 2700K / 3000K / 4000K / 5000K |
| Housing Material | Aluminum Alloy |
| Housing Color | Black / White |
| Optional Accessories | Trim Ring Available; Framed / Frameless Options |
| Installation | Fixed |
| Input Voltage | AC 220 V |
| Beam Angle | 20° / 40° / 60° |
| Control Options | DMX512 / 0–10V / Sensor Control / DALI |
| Ingress Protection | IP20 |
| Operating Temperature | −30°C to +50°C |

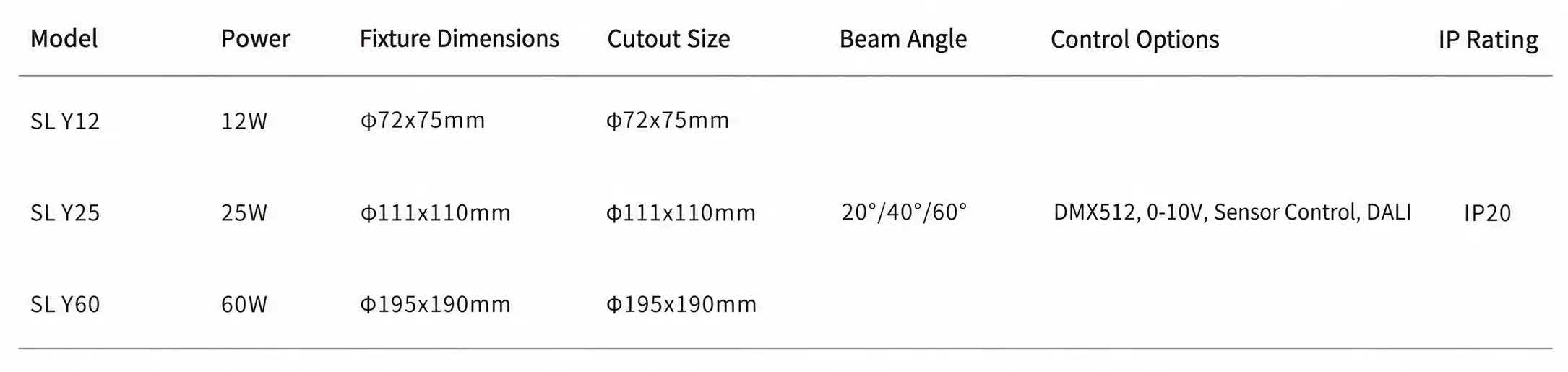

Fixture Options
