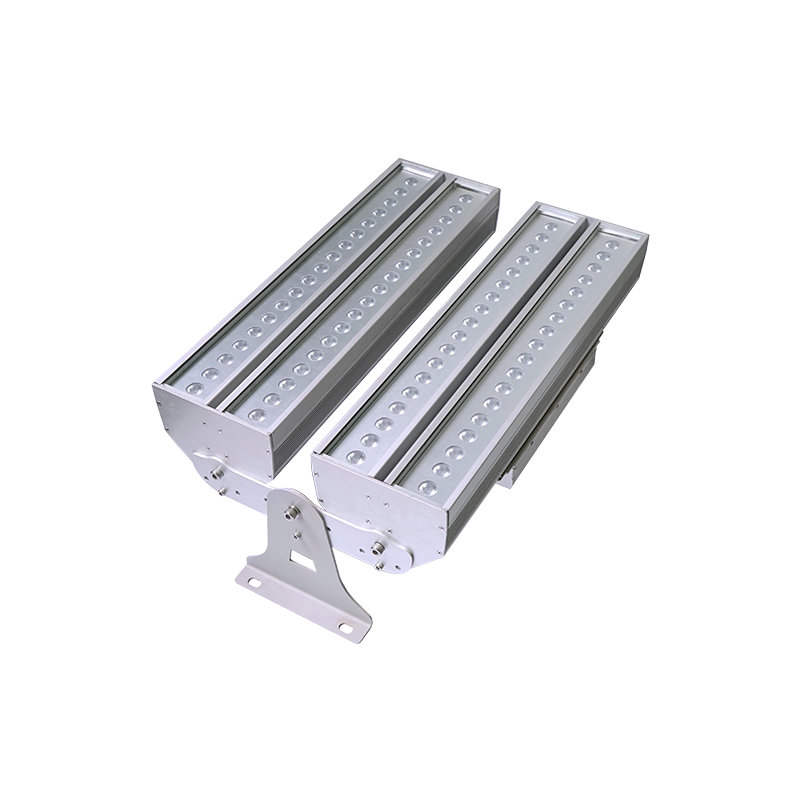

FL Series 500×68×52mm IP65 Modular Combination Square Flood Light for Large Facade and Bridge Lighting
Architectural-grade IP65 modular combination square flood light for large building facades, 橋, and public area lighting. 搭載 72 high-brightness LEDs, it delivers uniform and reliable projection. Its unique waterproof heat dissipation design supports long-term outdoor use, and multiple lighting modules can be combined for easy solution expansion.
主要なハイライト:
- 72 High-Brightness LEDs
- Combinable Lighting Modules
- Easy Lighting Solution Expansion
- Unique Waterproof Heat Dissipation Design

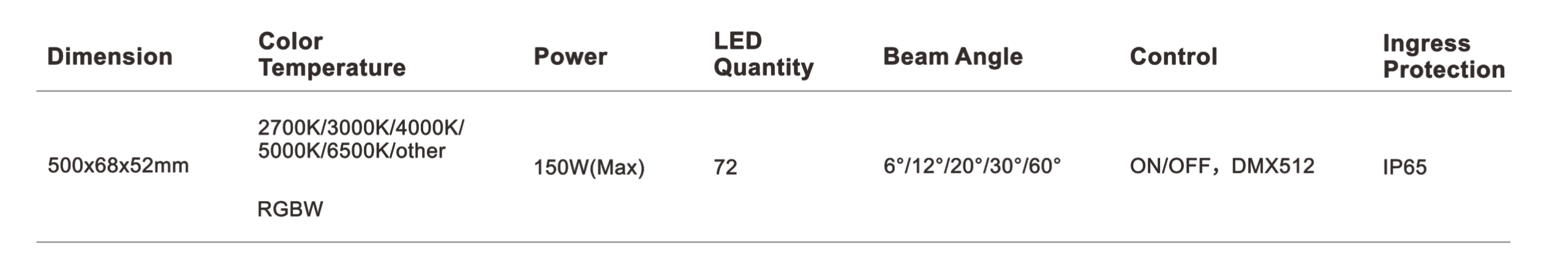

技術仕様
| Category | Parameters |
|---|---|
| LED Brand | CREE / OSRAM / LUMILEDS / NICHIA |
| LED Lifespan | ≥50,000 hrs |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / other |
| Input Voltage | DC24V |
| Control Method | ON/OFF constant lighting / DMX512 external control |
| Housing Material | Aluminum alloy body with tempered glass cover |
| Housing Color | Outdoor Powder Coating |
| Ingress Protection | IP65 |
| Installation | Fixed / Adjustable |
| Cable Exit | Bottom / Side |
| Cable Type | Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
治具オプション
