SL413 Series 42×41×1000mm IP66 DC48V Wall Washer Light for High-Rise Facade Lighting
Architectural-grade IP66 wall washer light with precision optics for accurate facade illumination. Designed for large building wall washing, bridge railings, overpasses, and mountain landscape lighting, it uses DC48V power to solve long-distance voltage drop, while reliable heat dissipation keeps the fixture stable and long-lasting.
Core Highlights:
- Precision Optical System
- IP66 Waterproof Protection
- -30°C to +50°C Temperature Range
- Efficient Heat Dissipation for Longer Life

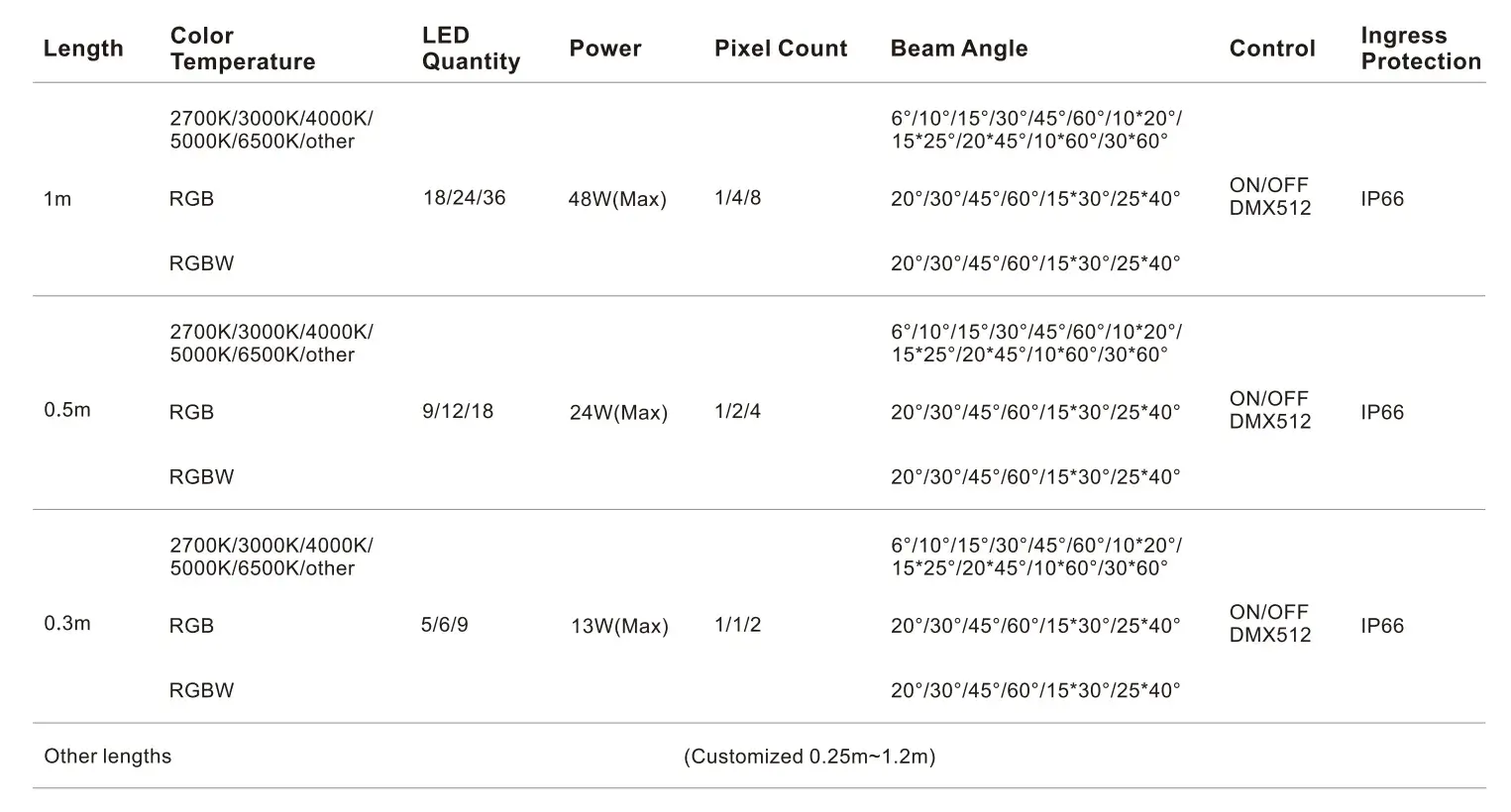

Technical Specifications
| Category | Parameters |
|---|---|
| LED Brand | CREE / OSRAM / LUMILEDS / NICHIA |
| LED Lifespan | ≥50,000 hrs |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / customized colors |
| Input Voltage | DC24V / DC48V input |
| Control Method | ON/OFF constant lighting / DMX512 external control |
| Housing Material | Aluminum alloy body with tempered glass cover |
| Housing Color | Oxidized silver white / oxidized silver gray / customized colors |
| Ingress Protection | IP66 |
| Dimensions & Weight | 42×41×1000 / 2.1kg net |
| Length | 0.25–1.2 m Custom Lengths |
| Installation | Fixed / Adjustable |
| Cable Exit | Bottom / Side |
| Cable Type | Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
Fixture Options
