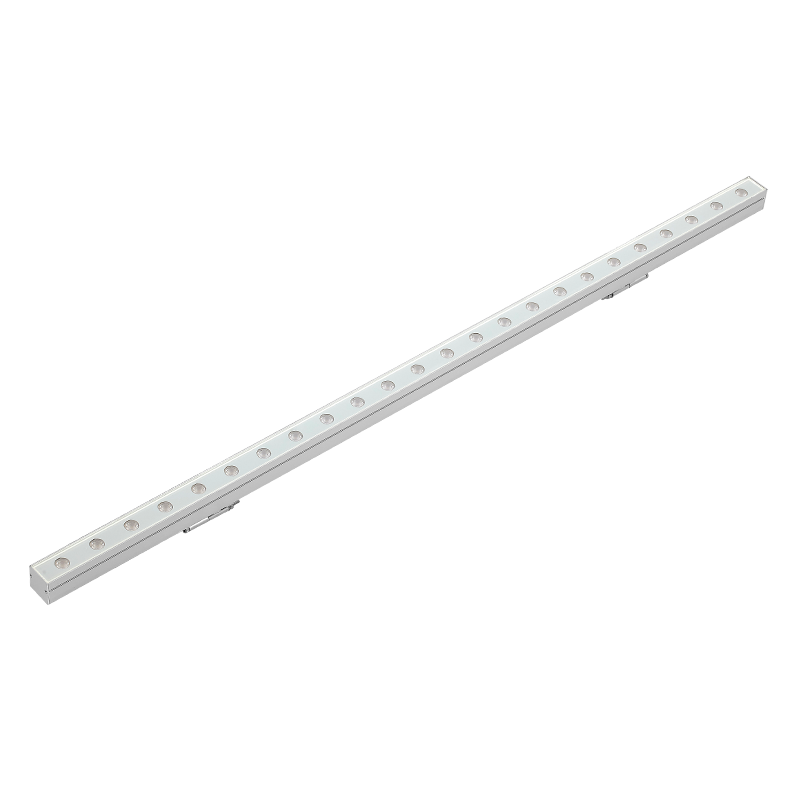

SL413 Series 30×30×1000mm IP66 Tempered Glass Wall Washer Light for Landmark Architectural Lighting
Architectural-grade IP66 wall washer light designed for large buildings, bridges, and landmark architectural lighting. It supports DC48V power supply, dissipation thermique efficace, and reliable outdoor waterproof performance, delivering stable wall washing illumination for long-term facade and landscape lighting applications. Custom lengths: 0.25m–1.2m.
Points forts:
- Supports DC48V Power Supply
- Tempered Glass Cover
- -30°C to +50°C Temperature Range
- DMX512 Control Supported
Spécifications techniques
| Category | Parameters |
|---|---|
| Light Source | CREE / OSRAM / LUMILEDS / NICHIA; Color Temperature: 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / customized colors; LED Lifespan: ≥50,000 hrs |
| Optics & Photometrics | Beam Angle: Single-color: 20° / 30° / 45° / 60° / 25×45° / 20×60° / 30×60°; RGB/RGBW: 30° / 45° / 20×45° / 30×50°; Pixel Count: 1/4/8 for 1m, 1/2/4 for 0.5m, 1/1/2 for 0.3m |
| Electrical | DC24V / DC48V input; maximum power varies depending on fixture length and LED configuration: 24W max. for the 1000mm model, 12W max. for the 500mm model, and 6W max. for the 300mm model; requires an external driver. |
| Control Protocol | ON/OFF (constant lighting mode) / DMX512 external control with self-developed anti-interference technology |
| Housing & Finish | Housing Material: Aluminum alloy body with tempered glass cover; Housing Color: Oxidized silver white / oxidized silver gray / customized colors |
| Ingress Protection | IP66 |
| Dimensions & Weight | 30×30×1000mm / 1.15kg net; custom lengths from 0.25m to 1.2m available |
| Mounting & Installation | Installation: Fixed / Adjustable; Cable Exit: Bottom / Side; Cable Type: Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
| Certifications | CE |
