SL413 Series 68×52×1000mm IP66 High-Power Wall Washer Light for Large Building Wall Washing and Bridge Lighting
Architectural-grade IP66 high-power wall washer light for large building wall washing and bridge lighting. Designed for large facades, bridge railings, overpasses, and mountain landscape lighting, it supports DC48V / AC220V input with efficient heat dissipation for stable long-term outdoor operation.Custom lengths: 0.25m–1.2m.
Core Highlights:
- High-Power Wall Washer Light
- Efficient Heat Dissipation
- IP66 Weather-Resistant Protection
- Large Building & Bridge Lighting

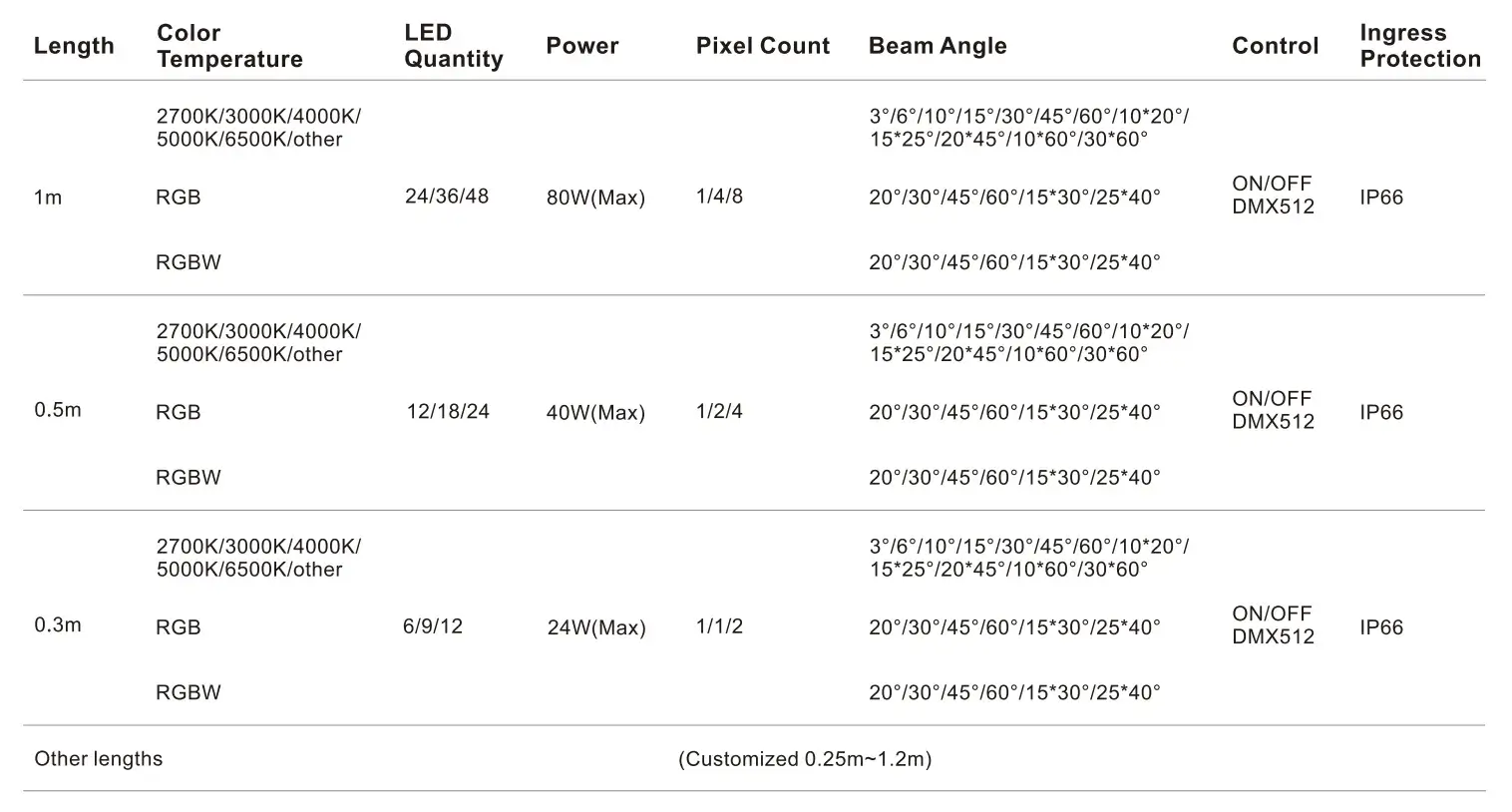

Technical Specifications
| Category | Parameters |
|---|---|
| LED Brand | CREE / OSRAM / LUMILEDS / NICHIA |
| LED Lifespan | ≥50,000 hrs |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / customized colors |
| Input Voltage | DC24V / DC48V / AC220V input |
| Control Method | ON/OFF constant lighting / DMX512 external control |
| Housing Material | Aluminum alloy body with tempered glass cover |
| Housing Color | Oxidized silver white / oxidized silver gray / customized colors |
| Ingress Protection | IP66 |
| Dimensions & Weight | 68×52×1000 / 3.8kg net |
| Length | 0.25–1.2 m Custom Lengths |
| Installation | Fixed / Adjustable |
| Cable Exit | Bottom / Side |
| Cable Type | Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
