SL413 Series 38×38×1000mm IP66 Precision Optics Wall Washer Light for Commercial Property Lighting
Architectural-grade IP66 wall washer light with a precision optical system and patented structural design. Especially suitable for urban landscape lighting, commercial properties, and media architecture, its optimized structure greatly improves heat dissipation efficiency and long-term reliability for outdoor facade lighting applications.
Core Highlights:
- Precision Optical System
- IP66 Waterproof Protection
- Efficient Heat Dissipation
- -30°C to +50°C Temperature Range

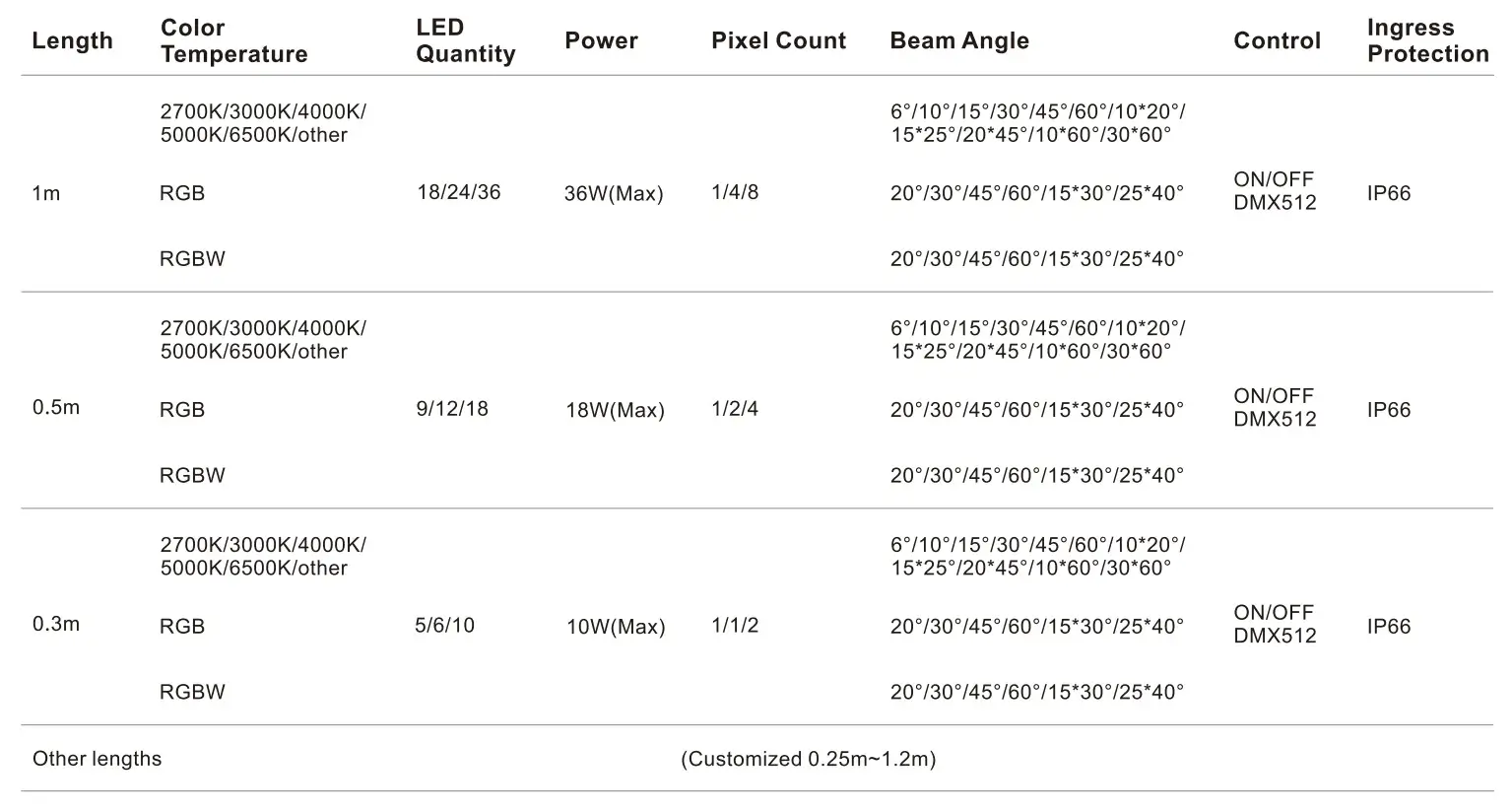

Technical Specifications
| Category | Parameters |
|---|---|
| Light Source | CREE / OSRAM / LUMILEDS / NICHIA; Color Temperature: 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / customized colors; LED Lifespan: ≥50,000 hrs |
| Optics & Photometrics | Beam Angle: Single-color: 6° / 10° / 15° / 30° / 45° / 60° / 10×20° / 15×25° / 20×45° / 10×60° / 30×60°; RGB/RGBW: 20° / 30° / 45° / 60° / 15×30° / 25×40°; Pixel Count: 1/4/8 for 1m, 1/2/4 for 0.5m, 1/1/2 for 0.3m |
| Electrical | DC 24V input; maximum power varies depending on fixture length and LED configuration: 36W max. for the 1000mm model, 18W max. for the 500mm model, and 10W max. for the 300mm model; requires an external driver. |
| Control Protocol | ON/OFF (constant lighting mode) / DMX512 external control with self-developed anti-interference technology |
| Housing & Finish | Housing Material: Aluminum alloy body with tempered glass cover; Housing Color: Oxidized silver white / oxidized silver gray / customized colors |
| Ingress Protection | IP66 |
| Dimensions & Weight | 38×38×1000 / 1.72kg net; custom lengths from 0.25m to 1.2m available |
| Mounting & Installation | Installation: Fixed / Adjustable; Cable Exit: Bottom / Side; Cable Type: Outdoor-rated sheathed signal and power cables |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
| Certifications | CE / ETL Listed |
