BL Series φ200×55mm IK10 Round LED Brick Light with Interactive Lighting for Plaza & Cultural Tourism Lighting
Interactive round LED brick light, 200mm diameter, for plazas, gardens, cultural tourism spaces, and other outdoor scenarios. High-strength frosted tempered glass and stainless steel base ensure durability for ground use. Uniform output with minimal dark areas supports clean effects, while interactive lighting adds interest to public spaces.
Core Highlights:
- Interactive Lighting Supported
- Uniform Output with Minimal Dark Areas
- IP67/IP68 Waterproof Protection
- 500kg Load-Bearing Capacity
Technical Specifications
| Category | Parameters |
|---|---|
| LED Brand | CREE / OSRAM / LUMILEDS / NICHIA |
| LED Lifespan | ≥50,000 hrs |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW / other |
| Input Voltage | DC24V / AC12V |
| Control Method | ON/OFF constant lighting / DMX512 external control |
| Housing Material | Stainless steel body |
| Housing Color | Natural stainless steel color |
| Cover Material | High-strength frosted tempered glass cover |
| Ingress Protection | IP67 / IP68 |
| Impact Resistance | IK10 |
| Installation | Embedded installation |
| Cable Exit | Bare wire |
| Cable Type | Outdoor-rated sheathed signal cable and power cable |
| Dimensions & Weight | φ200×55mm / 5kg net |
| Operating Environment | -30°C to +50°C working range; UV-resistant for outdoor use |
| Additional Features | Customizable / 500kg load-bearing / Anti-slip / Interactive lighting |

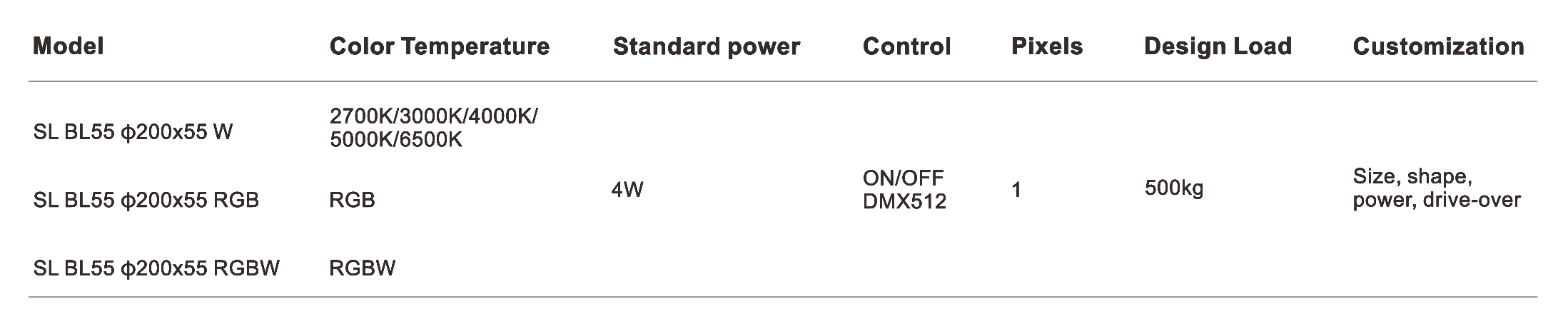

Fixture Options
